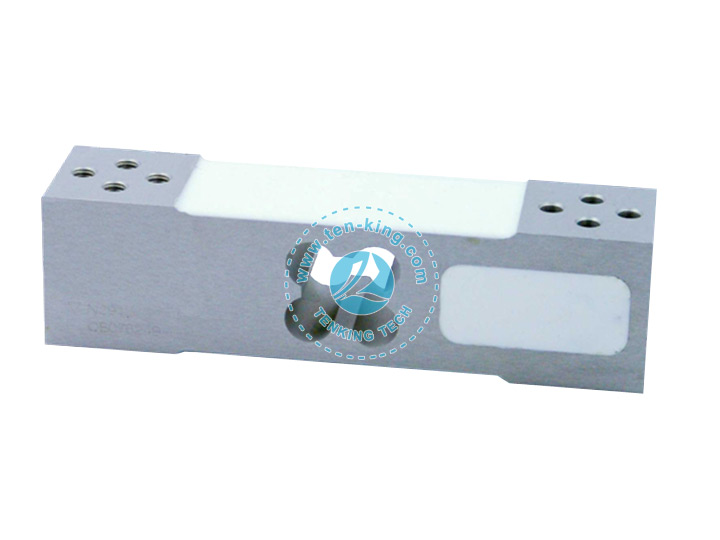

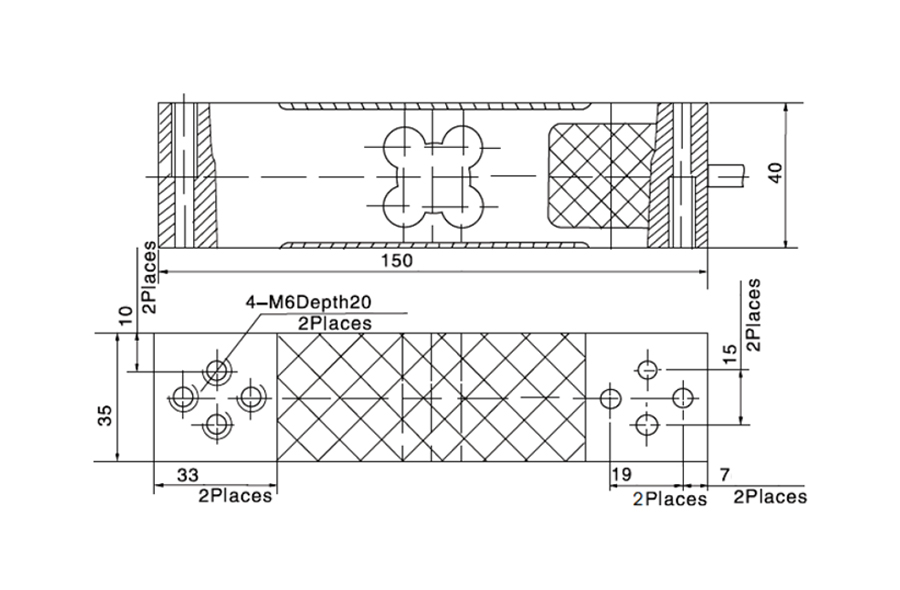

TK304单点式150×35×40
量程：50, 60, 80,100, 150, 200, 300 kg
本体材质：航空硬铝合金
综合精度：0.023%
电缆长度：3m
|
参数 |
Specifications |
技术指标/Technique |
|
额定容量 |
Capacity |
50, 80,100, 150, 200, 300 kg |
|
精度等级 |
Accuracy class |
C3 |
|
输出灵敏度 |
Rated output |
2.0±10%mV/V |
|
零点输出 |
Zero balance |
±2%F.S. |
|
非线性 |
Non-linearity |
0.017%F.S. |
|
滞后 |
Hysteresis |
0.017%F.S. |
|
重复性 |
Repeatability |
0.017%F.S. |
|
蠕变（30min） |
Creep(30min) |
0.017%F.S. |
|
温度灵敏度漂移 |
Temp.effect on output |
0.017%F.S./10℃ |
|
零点温度漂移 |
Temp.effect on zero |
0.02%F.S./10℃ |
|
输入电阻 |
Input impedance |
405±10Ω |
|
输出电阻 |
Output impedance |
350±5Ω |
|
激励电压 |
Recommended excitation |
5~15V |
|
工作温度范围 |
Operation temp range |
-10~50℃ |
|
安全超载 |
Safe overload |
150%F.S. |
|
电缆线尺寸 |
Cable size |
Φ5×2000mm |
|
材料 |
Material |
aluminum alloy |
|
防护等级 |
IP Class |
IP66 |
|
^大秤盘尺寸 |
Max.platform size |
400mm×400mm |
